Single-line diagram in. Approved panels out.
Estimation, engineering and operations for LV panel builders and switchgear manufacturers, on one panel data model, without a CAD seat.
For the people who turn a drawing into a panel.
A tender arrives as a single-line diagram and a specification. PanelFlow reads it into a feeder schedule and prices a bill of quantities across three OEM catalogues, so the offer goes out in hours.
The approval set, cover, SLD, GA, busbar, wiring and labels, plus a 3D rendering of every panel, is generated from the same data the estimate used. Consultant comments come back through a portal and are resolved on the record.
Engineering BOM and procurement list by supplier, release to the shop floor, routine verification to IEC 61439 and a witnessed FAT with the as-built handover pack.
Every project, from enquiry to handover, with margin, status and bottlenecks visible without asking.
Three modules, one panel data model.

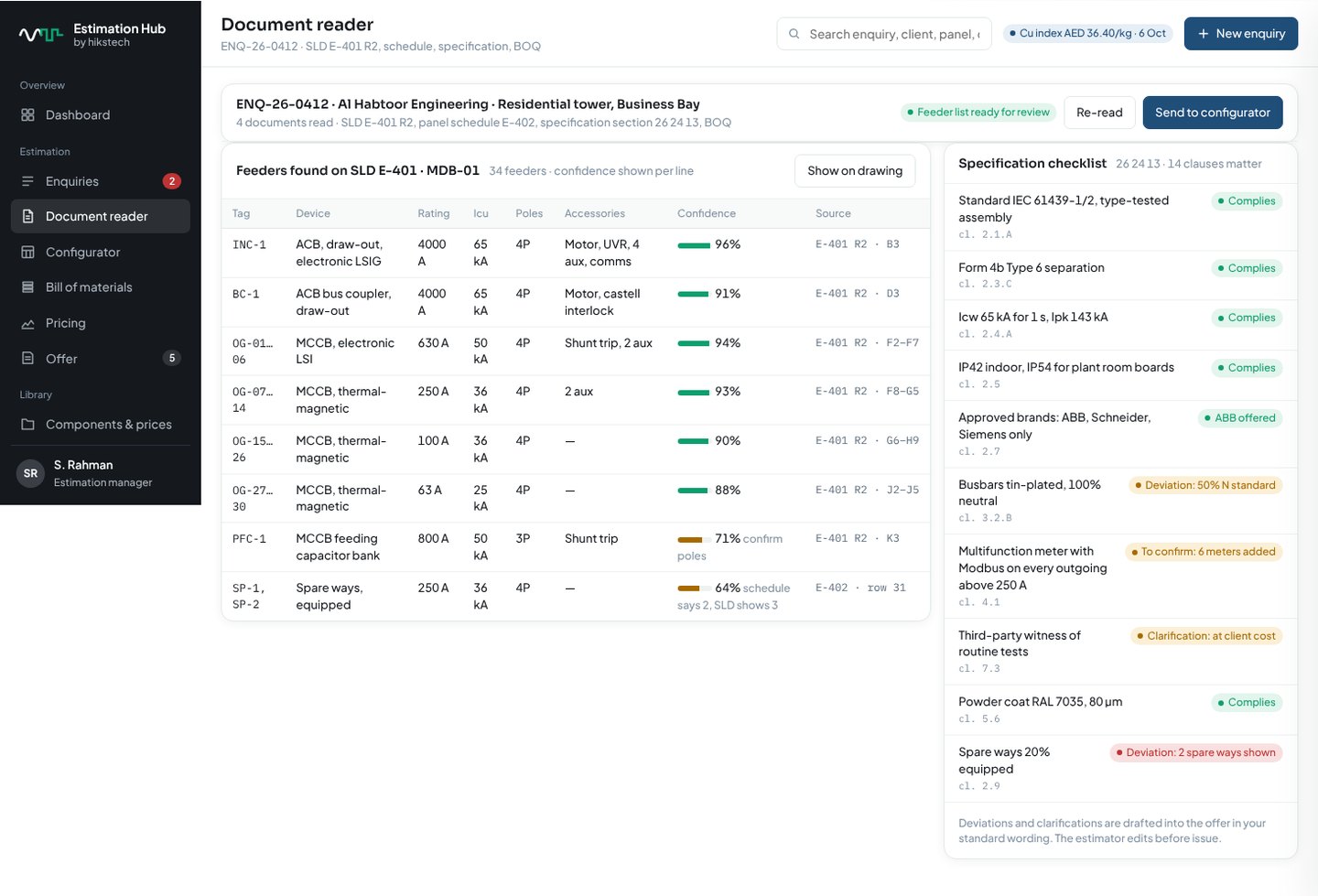

SLD and specification reading
The drawing and specification are read into a feeder schedule, with a read-reliability score so the estimator knows what to check.

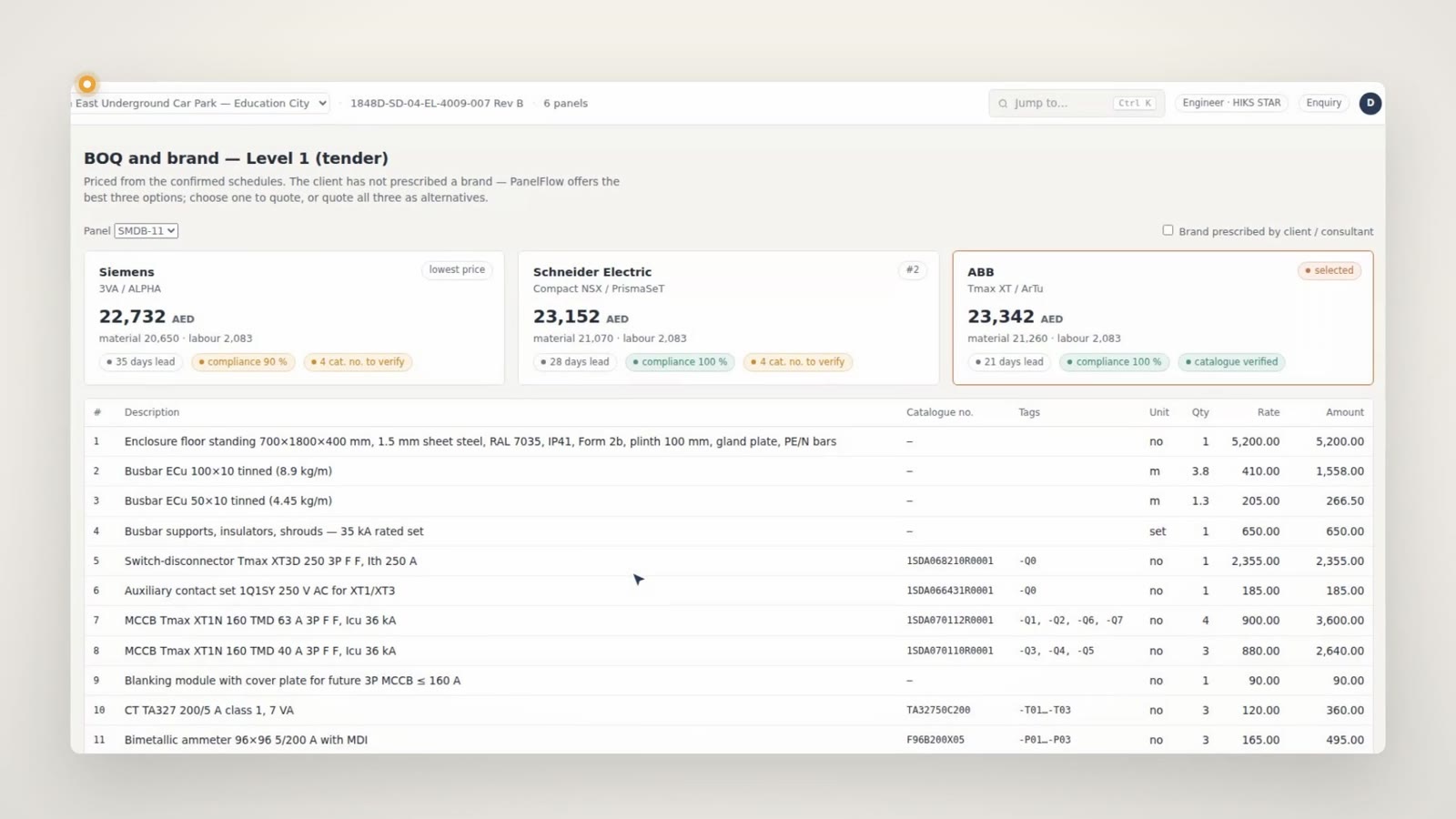

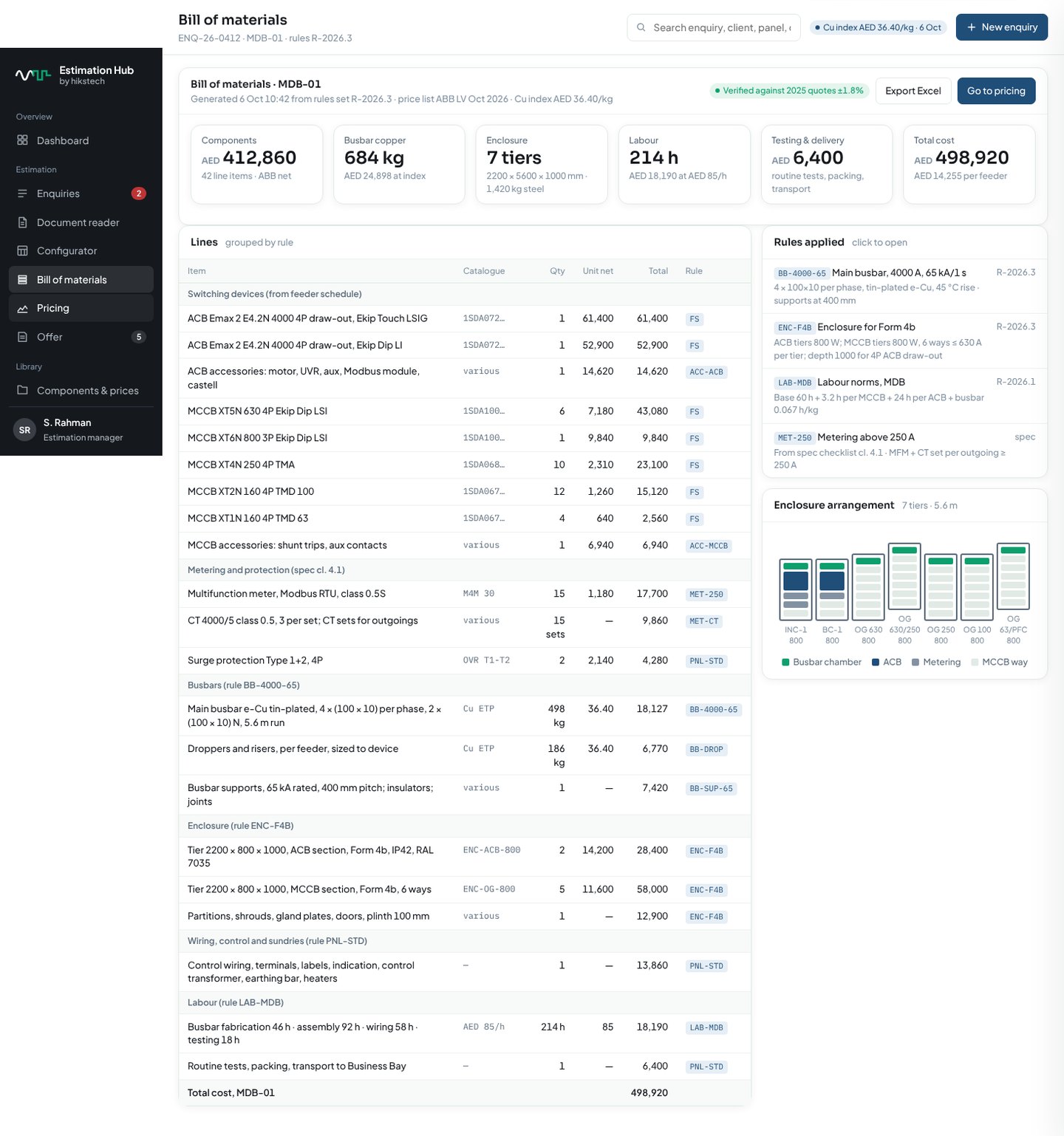

Tender BOQ, three brands
Priced with OEM catalogue numbers from three brands, expanding to engineering BOM and procurement list once the order is won.
Complete approval set
Cover, SLD, GA, busbar, wiring and label drawings and a 3D rendering of every panel, generated without a CAD seat.
Consultant review portal
Comments raised against the drawing, resolved and re-issued from PanelFlow, with the full history kept on the project.
Procurement and release

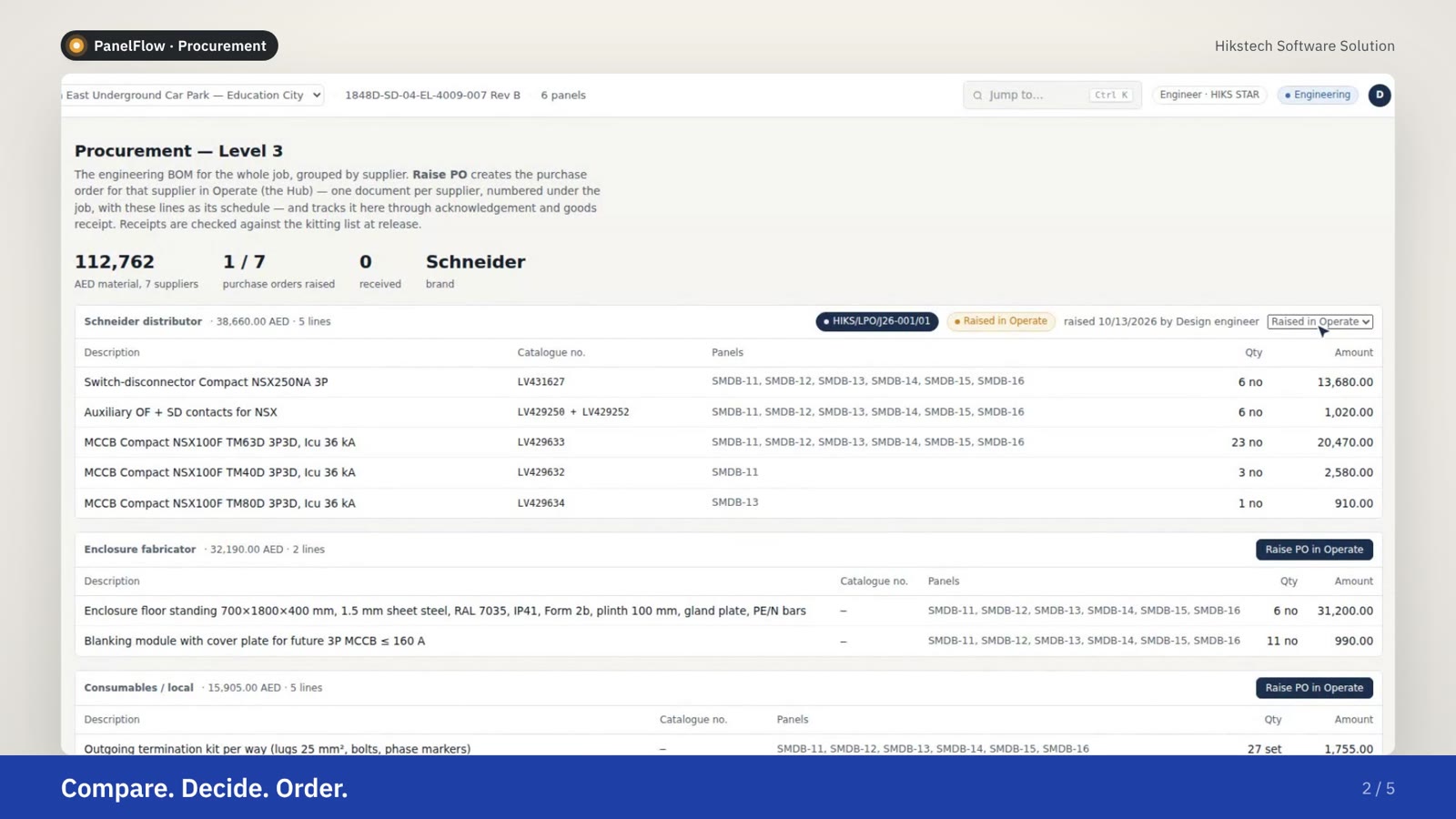

Procurement list by supplier, release to the test bay and shop floor, status visible to everyone who needs it.

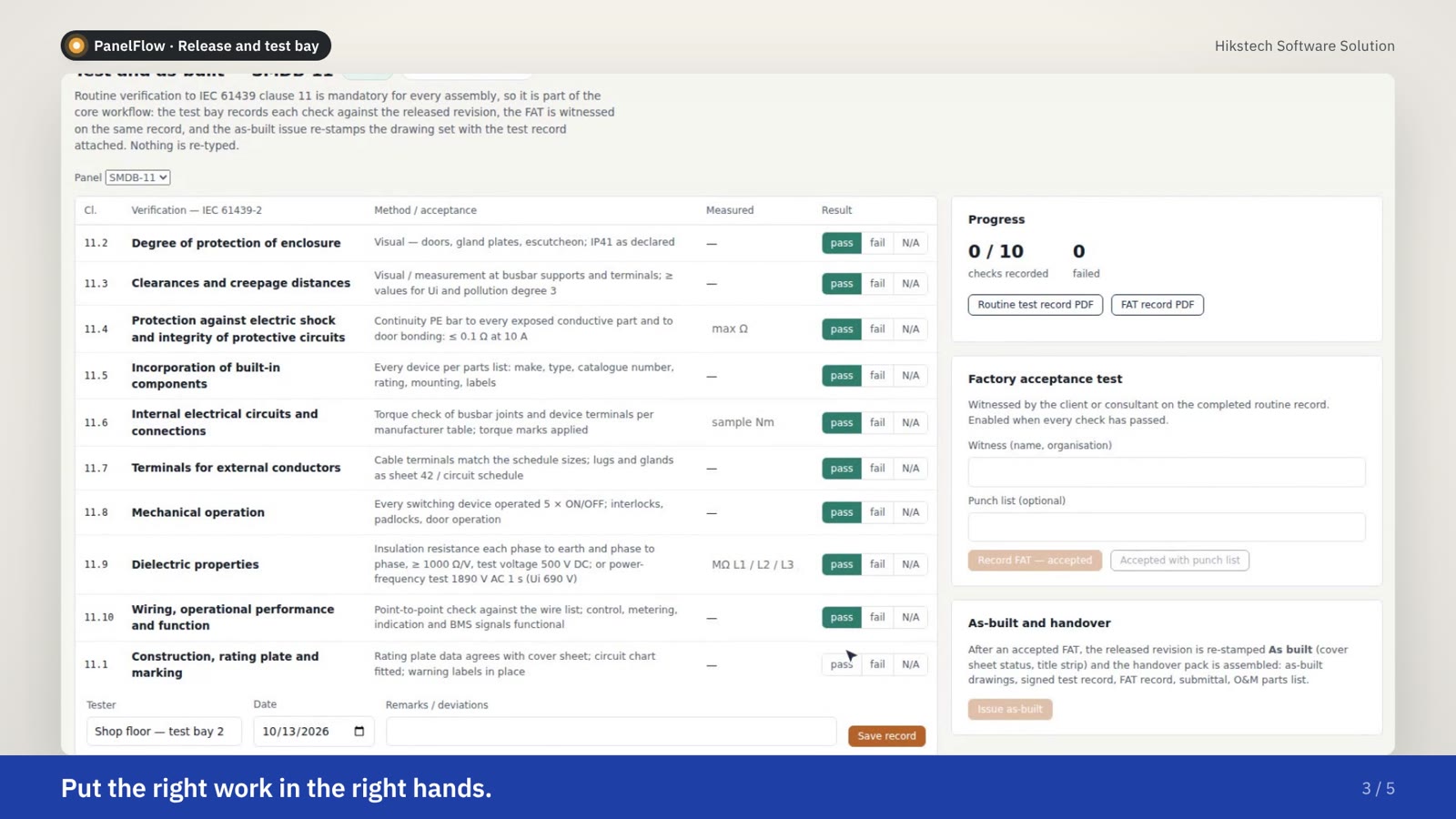

Verification, FAT and handover

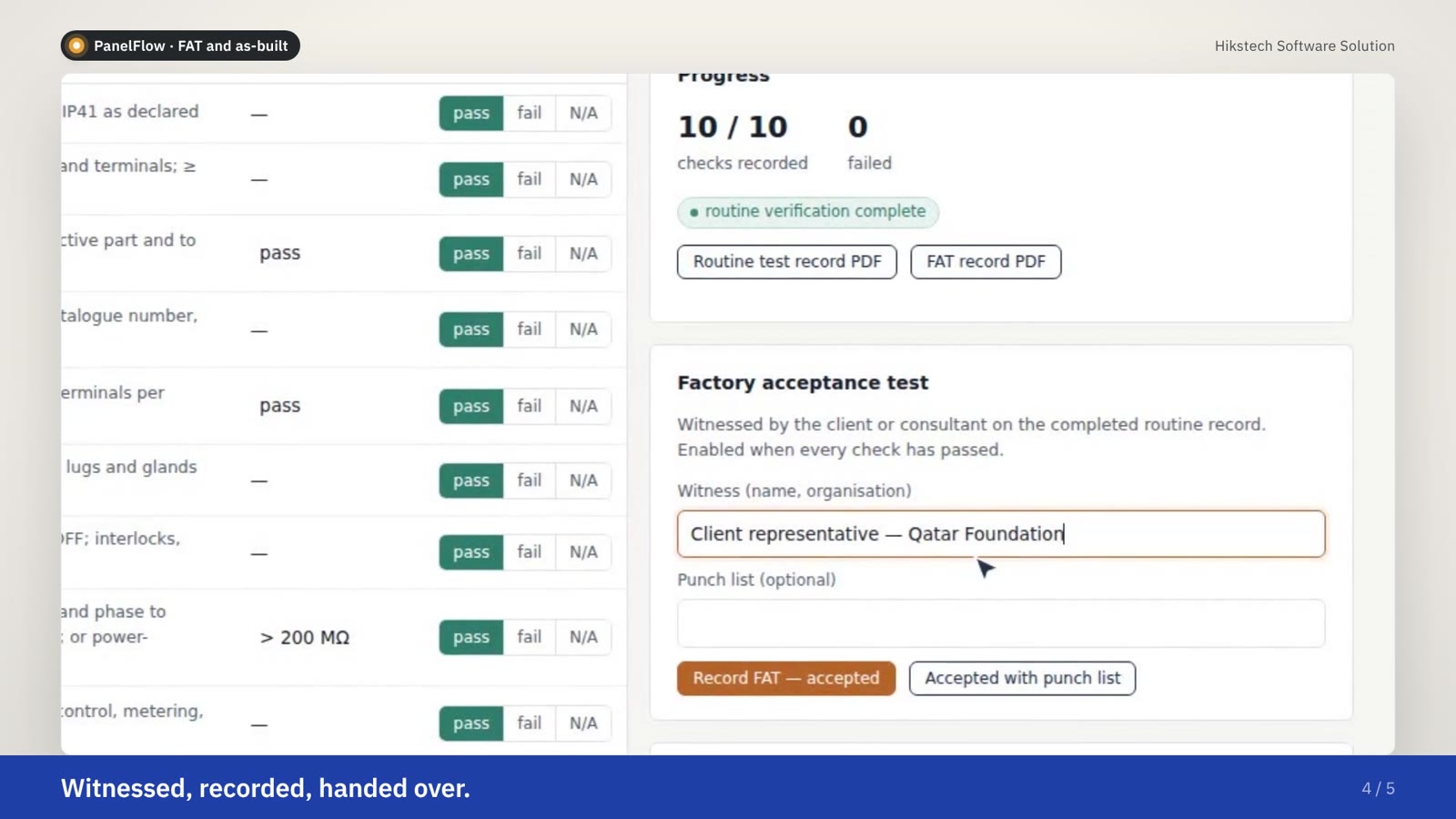

Routine verification to IEC 61439, witnessed factory acceptance test and the as-built handover pack.

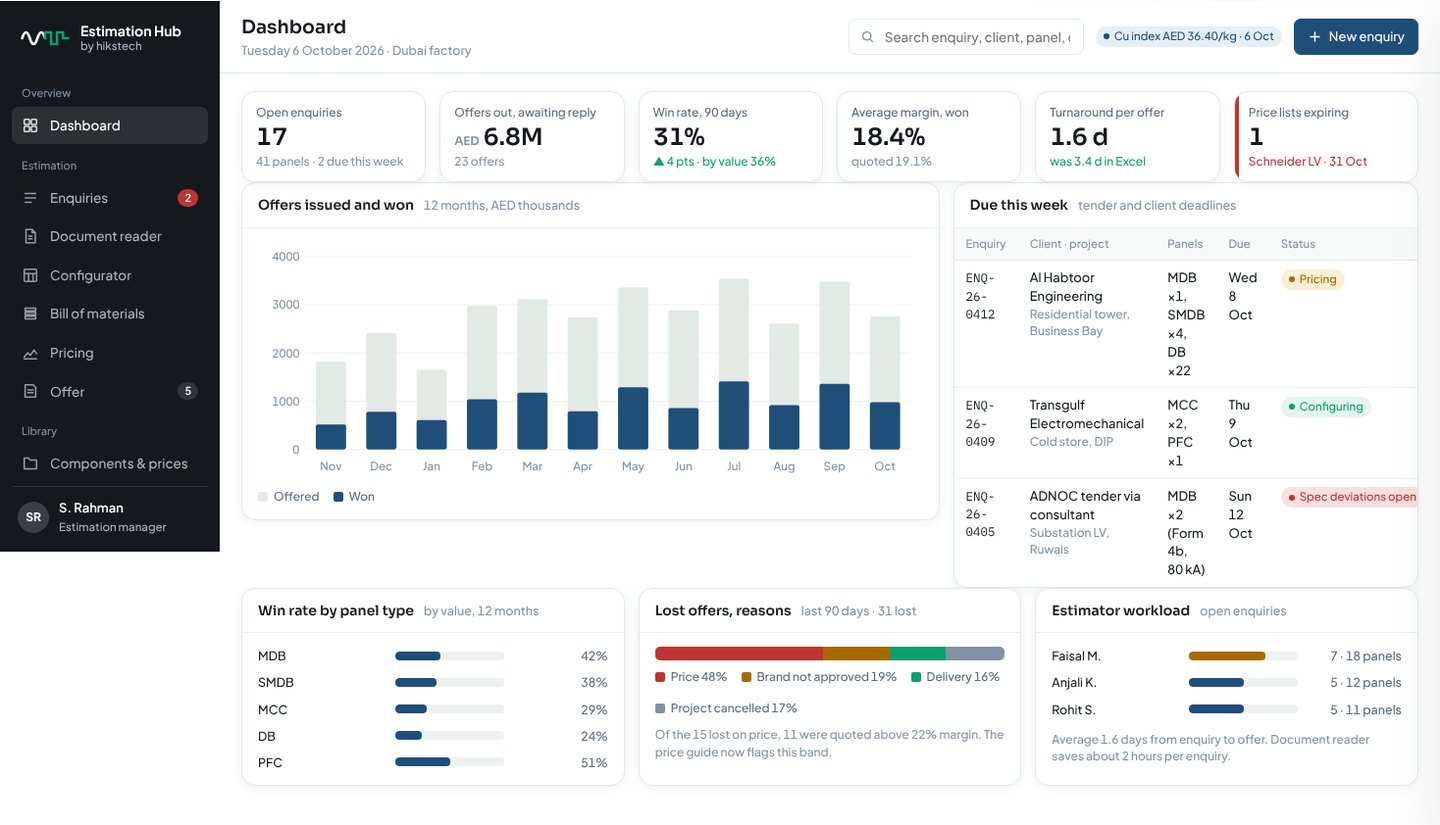

Estimation module.

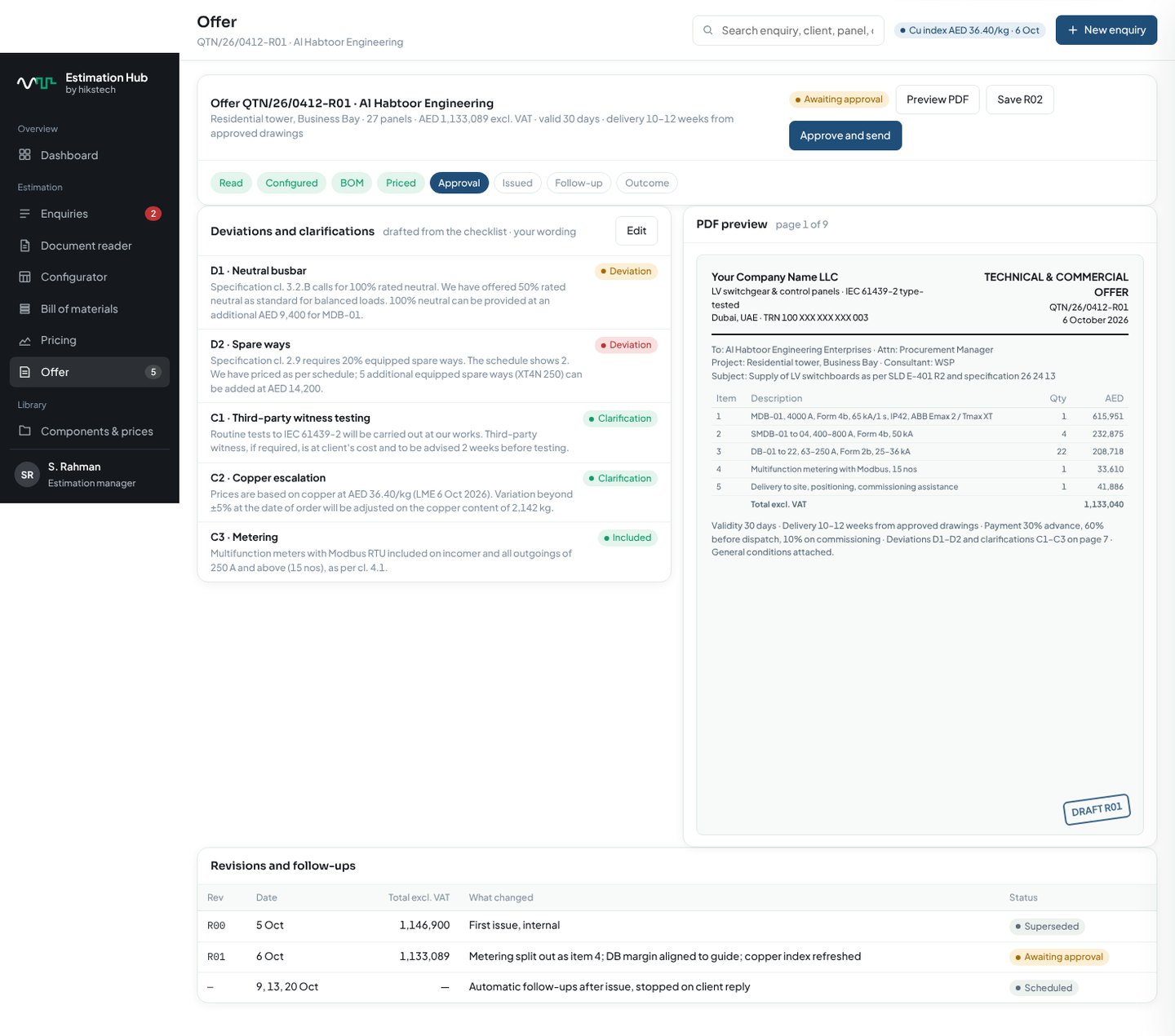

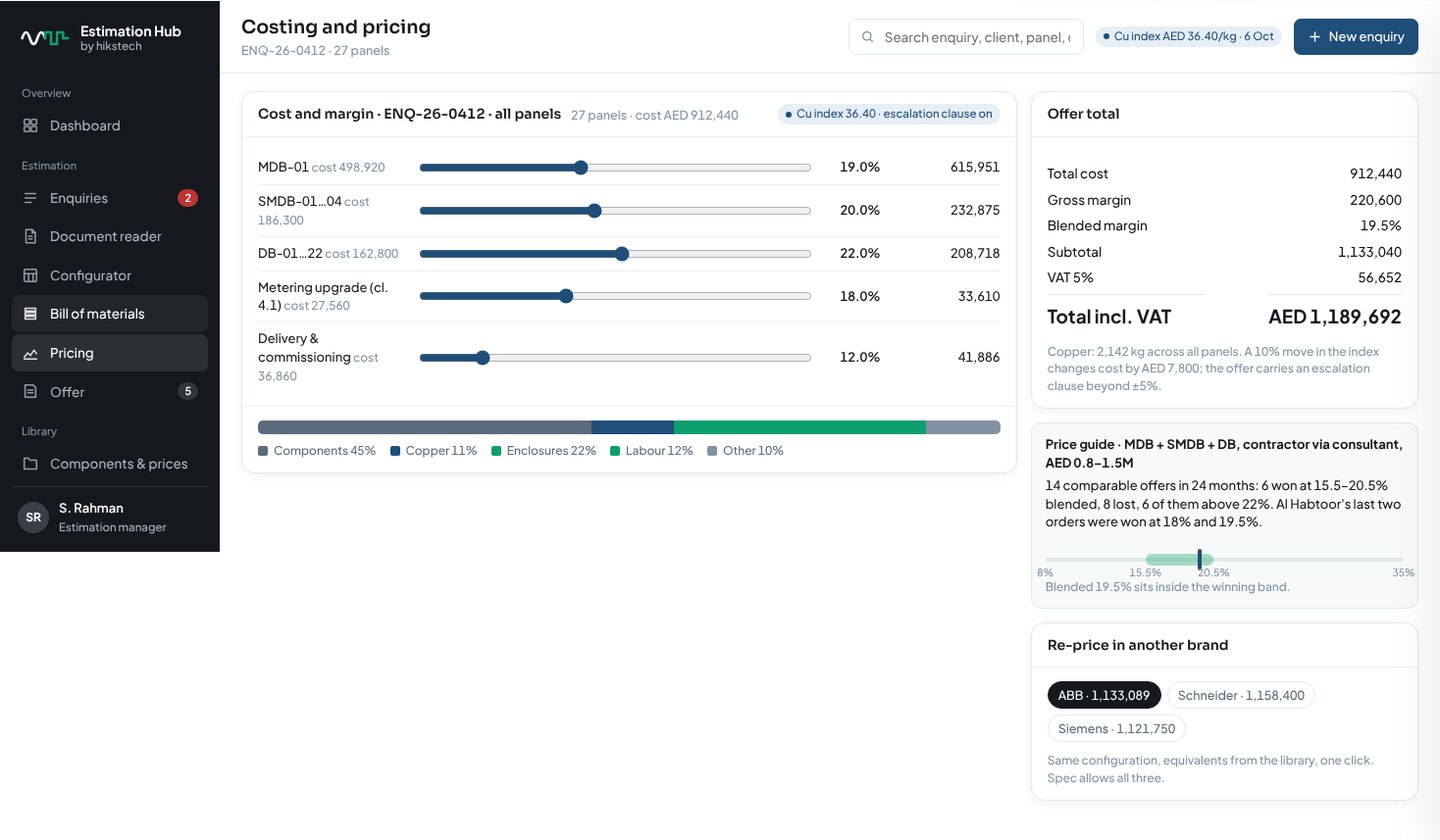

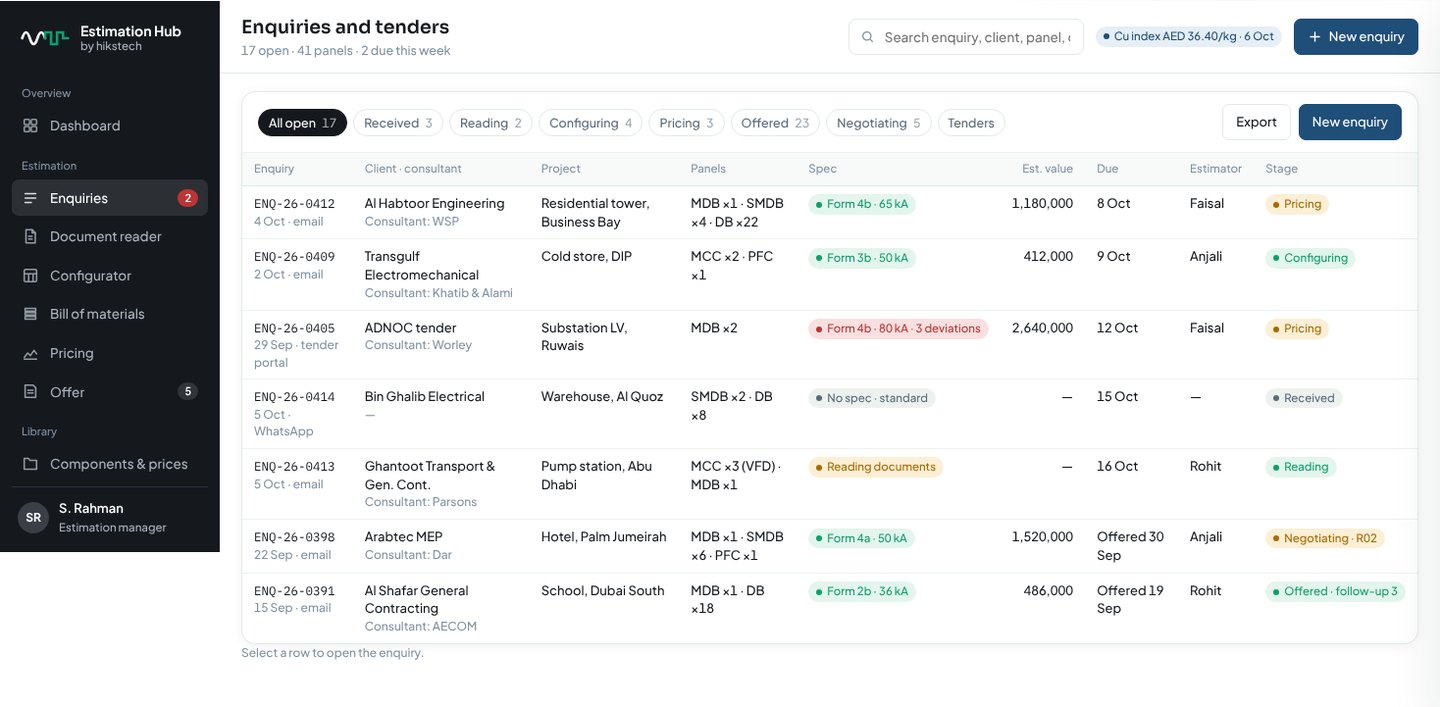

From enquiry to issued offer. Example enquiry: a residential tower with 27 panels. Click any screen to enlarge it.
Engineering and operations.
From the PanelFlow film. Demo project: an education campus car park with six sub-main distribution boards.
Tender to handover.
Sold by module, separately or together.
Modules
- Estimation: reading, feeder schedule, priced BOQ and offer
- Engineering: approval drawing set, 3D rendering, consultant review portal
- Operations: BOM, procurement, release, verification, FAT and handover
- Each module per organisation, hosted and supported by Hikstech
Included with every module
- Onboarding on your own templates, numbering and brand preferences
- Training for estimators, engineers and production staff
- Support under a written agreement, with an engineer answering
- Your project data, exported on request in standard formats
Frequently asked
Does PanelFlow replace our CAD software?
For panel approval drawings, yes: the cover, SLD, GA, busbar, wiring and label drawings and a 3D rendering are generated from the panel data model. Your CAD seats remain useful for anything outside that scope.
Which OEM catalogues are included?
The tender BOQ prices against catalogue numbers from three brands. Additional catalogues are added by agreement.
How is PanelFlow licensed?
By module: estimation, engineering and operations, separately or together, per organisation, hosted and supported by Hikstech.
What happens when the consultant comments?
Comments are raised in the review portal against the drawing, resolved and re-issued from PanelFlow, with the full history kept on the project.
How reliable is the drawing reading?
Every read carries a reliability score. High-confidence items pass straight through; the estimator is pointed to anything the system was less sure about, and corrections feed back into the schedule.
Bring a tender. Leave with a priced offer.
Send a single-line diagram and specification ahead of the demonstration and we will run it through PanelFlow live.
